English Products
wedofloor-03Epoxy textured coating system
Product Details
Product features
Excellent anti-slip property;
Low solvent content, environmentally friendly and low pollution; Quick construction,
Easy cleaning;
High strength, resistant to wear, anti-mold, waterproof, durable and long-lasting.
Scope of application
It is particularly suitable for industrial buildings and underground garages and other such places.
| Performance | Technical Specification (GB/T22374-2018) | Test Data |
| State in Container | Uniform after mixing and stirring, no hard lumps | Conforms |
| Coating Appearance | Large and small orange peel texture | Normal coating appearance |
| Drying Time / h | ||
| - Surface Dry | ≤ 8 | ≤ 4 |
| - Through Dry | ≤ 48 | ≤ 24 |
| Hardness | ||
| - Pencil Hardness (scratch) | Negotiated | 2H |
| - Shore Hardness (Type D) | Negotiated | / |
| Tensile Bond Strength / MPa | ||
| - Standard Conditions | ≥ 2.0 | 4.7 |
| - After Water Immersion | ≥ 2.0 | 4.3 |
| Abrasion Resistance (750g/500r) / g | ≤ 0.030 | 0.025 |
| Impact Resistance | ||
| - Light Load (500g steel ball) | No cracks, no peeling on the coating | Conforms to light load |
| - Heavy Load (1000g steel ball) | No cracks, no peeling on the coating | Conforms to heavy load |
| Anti-slip Property, Dry Coefficient of Friction | ≥ 0.5 | 0.6 |
| Water Resistance (168h) | No blistering, no peeling, slight discoloration allowed, recover within 2h | No blistering, no peeling, slight discoloration allowed, recover within 2h |
| Chemical Resistance | ||
| - Oil Resistance (120# solvent oil, 72h) | No blistering, no peeling, slight discoloration allowed | No blistering, no peeling, slight discoloration allowed |
| - Alkali Resistance (20% NaOH, 72h) | No blistering, no peeling, slight discoloration allowed | No blistering, no peeling, slight discoloration allowed |
| - Acid Resistance (10% H₂SO₄, 48h) | No blistering, no peeling, slight discoloration allowed | No blistering, no peeling, slight discoloration allowed |

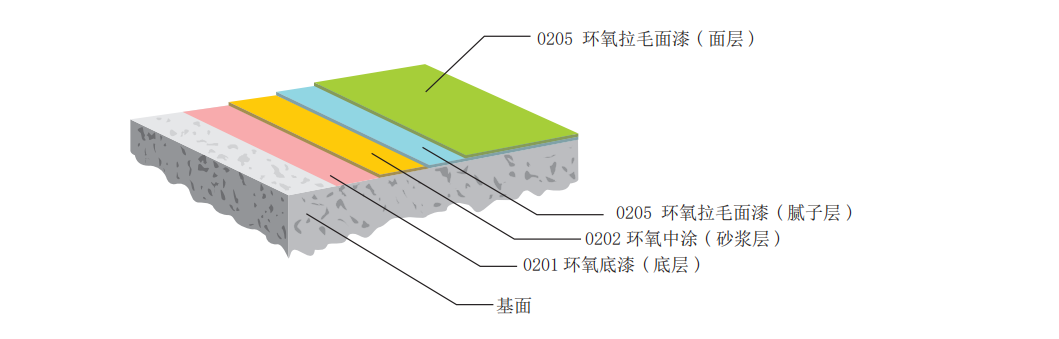

| Coating Layer | Material Model | Packaging Specification | Mixing Ratio | Single-pass Usage (kg/m²) | Single-pass Thickness (mm) |
| Primer | OVG-0201 Epoxy Primer | 16KG / 16KG | 1:01 | 0.12–0.15 | 0.08–0.12 |
| Mortar Layer | OVG-0202 Epoxy Mid-coat | 25KG / 5KG | 5:01 | 0.25–0.30 | 0.25–0.30 |
| Putty Layer | OVG-0205 Epoxy Anti-slip Topcoat | 25KG / 5KG | 5:01 | 0.1 | 0.07–0.08 |
| Topcoat | OVG-0205 Epoxy Anti-slip Topcoat | 25KG / 5KG | 5:01 | Large grit: 0.5 Small grit: 0.4 | 0.40 0.32 |
Notes
The construction site should have good ventilation.
The construction tools can be cleaned with OVG-0100X floor paint thinner.
Construction workers should have good protective measures. If this product gets on the skin, eyes, etc., please wash it off immediately with clean water.
Construction conditions and base material preparation should be strictly carried out in accordance with the product manual.
Solvent-based coatings that are applied too thickly at one time are prone to blistering. For areas with pits and expansion joints, they must be repaired in advance. Solvent-free materials are preferred. Secondly, it is recommended to add OVG-0202:40-60 mesh quartz sand: 80-120 mesh quartz sand in a ratio of 1:1-2:1-2. The deeper the pit, the more sand should be added.
Technical Statement
To ensure that your project can select the appropriate floor system, please consult our professional technical advisors. For special colors or effect designs, we can manufacture them according to your requirements. Our company can form design schemes of different specifications (thickness, effect, etc.) through flexible matching and combination of various products to meet the personalized requirements of all kinds of customers.
| Process Name | Detailed Practices and Requirements | Single-pass Usage (kg/m²) |
| Base Treatment | 1. Base strength: No less than C20. | / |
| 2. Base flatness: ≤5mm when measured with a 2m straightedge. | ||
| 3. Base dryness: Surface moisture content < 8%. | ||
| 4. Repair hollowing and cracks on the ground in advance. | ||
| 5. Fully grind the concrete base. | ||
| Primer Coat | 1. Use OVG-0201: Mixing time shall be no less than 3 minutes. | 0.12–0.15 |
| 2. Apply by roller or brush. | ||
| 3. Use a brush to apply at door edges, corners, and around equipment. | ||
| Mid-coat Mortar Layer | 1. Use OVG-0202: Mixing time shall be no less than 3 minutes. Add quartz sand (generally 80–120 mesh) at a recommended ratio of paint:quartz sand = 1:0.2–0.3, and mix evenly. | 0.25–0.30 |
| 2. Scrape with a trowel to form an integral layer. The number of passes can be adjusted as needed. | ||
| 3. After curing, grind and remove dust to ensure no trowel marks. | ||
| Putty Layer | 1. Use OVG-0205: Mix the base (A) and curing agent (B) in a ratio of 5:1, then add an appropriate amount of filler (heavy calcium, talc powder, etc.) at a paint:filler ratio of 1:0.1–0.2, and mix evenly. | 0.1 |
| 2. Scrape evenly with a trowel, focusing on filling defects such as pinholes and air holes. The number of passes can be adjusted as needed. | ||
| 3. After curing, fully grind and remove dust. | ||
| Topcoat Layer | 1. Use OVG-0205: Mix the base (A) and curing agent (B) in a ratio of 5:1 and stir evenly. | 0.40–0.50 |
| 2. Apply the topcoat with a trowel or trowel, ensuring a uniform and moderate thickness. The single-pass usage is controlled at 0.4kg/m² (small grit) and 0.5kg/m² (large grit). | ||
| 3. Immediately after coating, use a special anti-slip roller to roll. Ensure good lap treatment at construction joints, and the contact time with the previous seam shall not exceed 10 minutes. |
Construction section
Construction conditions
Air temperature should be above 5℃ and below 30℃
Relative humidity < 80%
The moisture content of the substrate surface is less than 8%
For specific details, please refer to the construction plan.
