wedofloor-05Epoxy self-leveling system
Product Details
Product features
The surface is smooth and clean, with bright colors and excellent decorative effect.
It has stable curing, good leveling property, is easy to apply, has high mechanical strength and good wear resistance.
It does not attract dust, does not generate dust, and is extremely easy to clean, making it the first choice for cleanrooms.
Chemical resistance: It can resist salts such as sodium chloride, ferric chloride, copper sulfate, ammonia water, animal and vegetable oils, gasoline and other chemical media.
Scope of application
Suitable for industrial floors with light to medium loads, such as machinery
Warehouses in industries such as machinery, electronics, medicine, food, and light textiles
The workshop can also be used in large shopping malls, offices and other places with higher requirements.
| Technical Specifications | |||
| Performance | Item | Technical Index (GB/T22374-2018) | Test Data |
| Condition in Container | - | Uniform after stirring, no hard lumps | Compliant |
| Coating Appearance | - | Flat surface; no visible shrinkage cavity, blistering, blooming, wrinkling, pinhole, cracking, etc. | Coating appearance is normal |
| Drying Time /h | Tack-free time | ≤ 8 | ≤ 4 |
| Hard dry time | ≤ 48 | ≤ 24 | |
| Hardness | Pencil hardness (scratch) | To be agreed | / |
| Shore hardness (Type D) | To be agreed | 70 | |
| Tensile Bond Strength /MPa | Under standard conditions | ≥ 2.0 | 7.6 |
| After water immersion | ≥ 2.0 | 6.7 | |
| Abrasion Resistance (750g/500r) /g | - | ≤ 0.030 | 0.023 |
| Impact Resistance | Light load (500g steel ball) | No cracks or peeling of coating | Compliant (heavy load standard) |
| Heavy load (1000g steel ball) | No cracks or peeling of coating | Compliant | |
| Skid Resistance, Dry Friction Coefficient | - | ≥ 0.5 | 0.55 |
| Water Resistance (168h) | - | No blistering, no peeling; slight discoloration allowed, recovery in 2h | No blistering, no peeling; slight discoloration, recovery in 2h |
| Chemical Resistance | Oil resistance (120# solvent oil, 72h) | No blistering, no peeling; slight discoloration allowed | No blistering, no peeling; slight discoloration allowed |
| Alkali resistance (20%NaOH, 72h) | No blistering, no peeling; slight discoloration allowed | No blistering, no peeling; slight discoloration allowed | |
| Acid resistance (10%H₂SO₄, 48h) | No blistering, no peeling; slight disc | ||

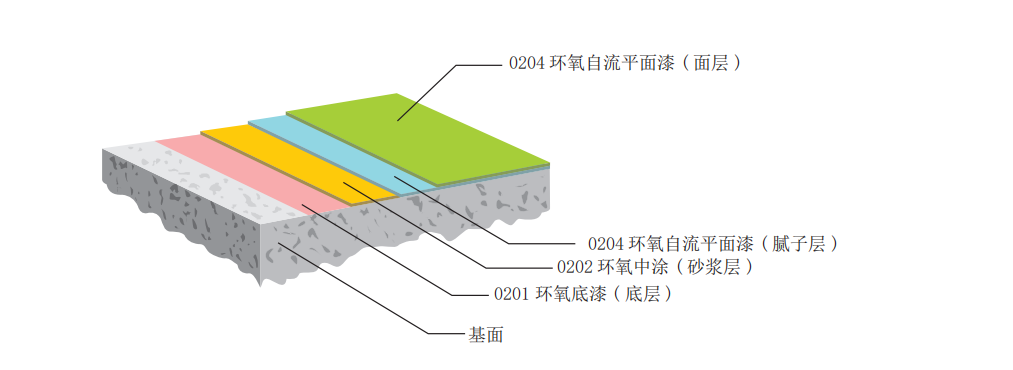

| Matching Instructions | |||||
| Coating Layer | Material Model | Packaging Specification | Mix Ratio | Single Coat Consumption (kg/㎡) | Single Coat Thickness (mm) |
| Primer Coat | OVG-0201 Epoxy Primer | 16KG/16KG | 1:01 | 0.12-0.15 | 0.07 |
| Mortar Layer | OVG-0202 Epoxy Mid-Coat | 25KG/5KG | 5:01 | 0.25-0.3 | 0.3-0.4 |
| Putty Layer | OVG-0204 Epoxy Self-Leveling Topcoat | 25KG/5KG | 5:01 | 0.1 | 0.07-0.08 |
| Topcoat Layer | OVG-0203 Epoxy Self-Leveling Topcoat | 25KG/5KG | 5:01 | 0.7-0.8 | 0.6-0.7 |
Notes
The construction site should have good ventilation.
The construction tools can be cleaned with OVG-0100X floor paint thinner.
Construction workers should have good protective measures. If this product gets on the skin, eyes, etc., please wash it off immediately with clean water.
Construction conditions and base material preparation should be strictly carried out in accordance with the product manual.
Technical Statement
To ensure that your project can select the appropriate floor system, please consult our professional technical advisors. For special colors or effect designs, we can manufacture them according to your requirements. Our company can form design schemes of different specifications (thickness, effect, etc.) through flexible matching and combination of various products to meet the personalized requirements of all kinds of customers.
| Construction Process | ||
| Process Name | Specific Methods & Requirements | Single Coat Consumption (kg/m²) |
| Substrate Treatment | 1. Substrate strength: Not less than C20 | / |
| 2. Substrate flatness: ≤5mm when measured with a 2m ruler | ||
| 3. Substrate dryness: Moisture content of substrate surface < 8% | ||
| 4. Repair hollowing and cracks on the ground in advance | ||
| 5. Fully grind the concrete substrate | ||
| Primer Coat | 1. Use OVG-0201: Mix main paint and curing agent evenly | 0.12-0.15 |
| 2. Roll evenly with a roller, or scrape uniformly with a trowel/iron plate | ||
| 3. Use a wool brush for edges, corners and machine corners | ||
| Mid-Coat Mortar Layer | 1. Use OVG-0202: Mix main paint and curing agent evenly (stir for no less than 3 minutes); add quartz sand (usually 80-120 mesh) at the recommended ratio (paint: quartz sand = 1: 0.2-1) and mix uniformly | 0.25-0.3 |
| 2. Scrape overall with a trowel; adjust the number of coats as needed | ||
| 3. After curing, grind and remove dust | ||
| Putty Layer | 1. Use OVG-0204: Mix main paint and curing agent evenly (stir for no less than 3 minutes); add appropriate fillers (quartz powder, talc powder) at the recommended ratio (paint: powder = 1: 0.1-0.5) and mix uniformly | 0.1 |
| 2. Scrape evenly with a trowel; focus on filling defects like pinholes and air holes; adjust coats as needed | ||
| 3. After curing, fully grind and remove dust | ||
| Topcoat Layer | Use WOVG-0204: Mix main paint and curing agent in proportion, stir evenly; trowel uniformly and slowly. Require uniform coating with no missed areas; defoam with a defoaming roller after troweling | 0.7-0.8 |
Construction section
Construction conditions
Air temperature should be above 5℃ and below 30℃
Relative humidity < 80%
The moisture content of the substrate surface is less than 8%
For specific details, please refer to the construction plan.
